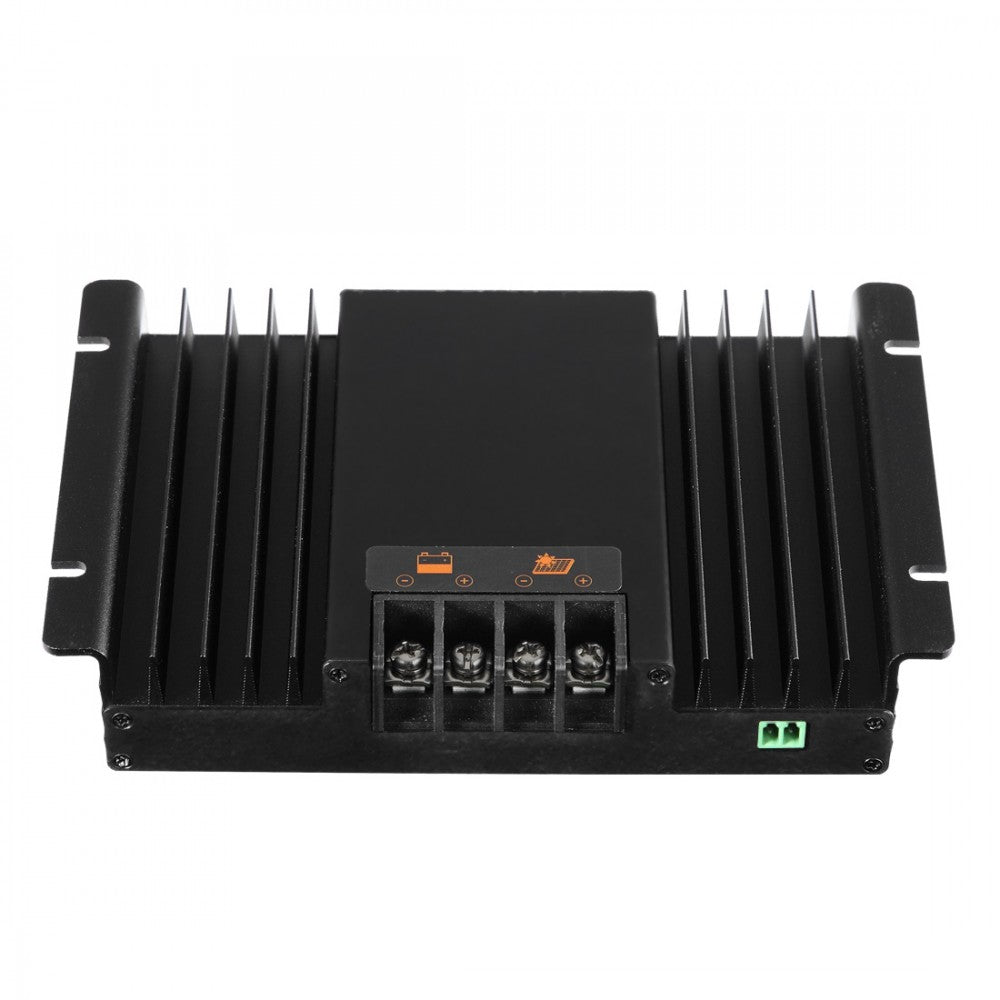

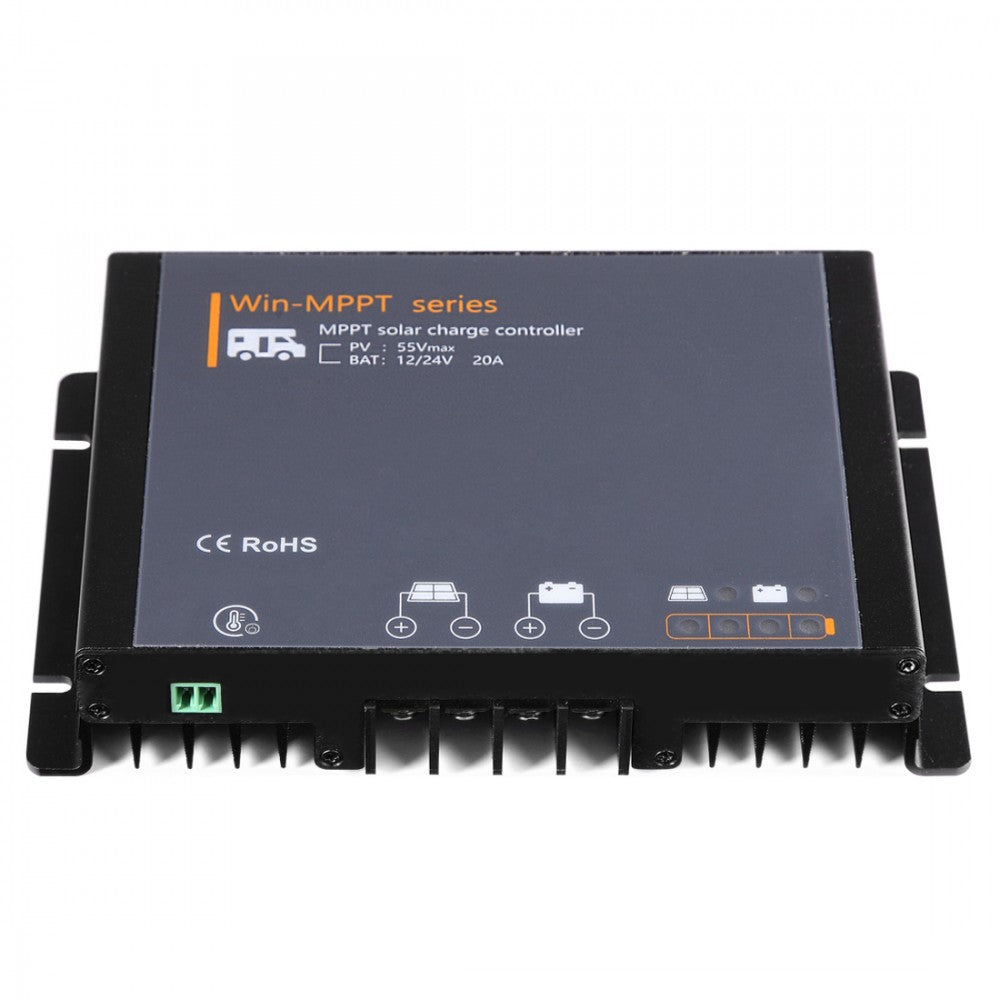

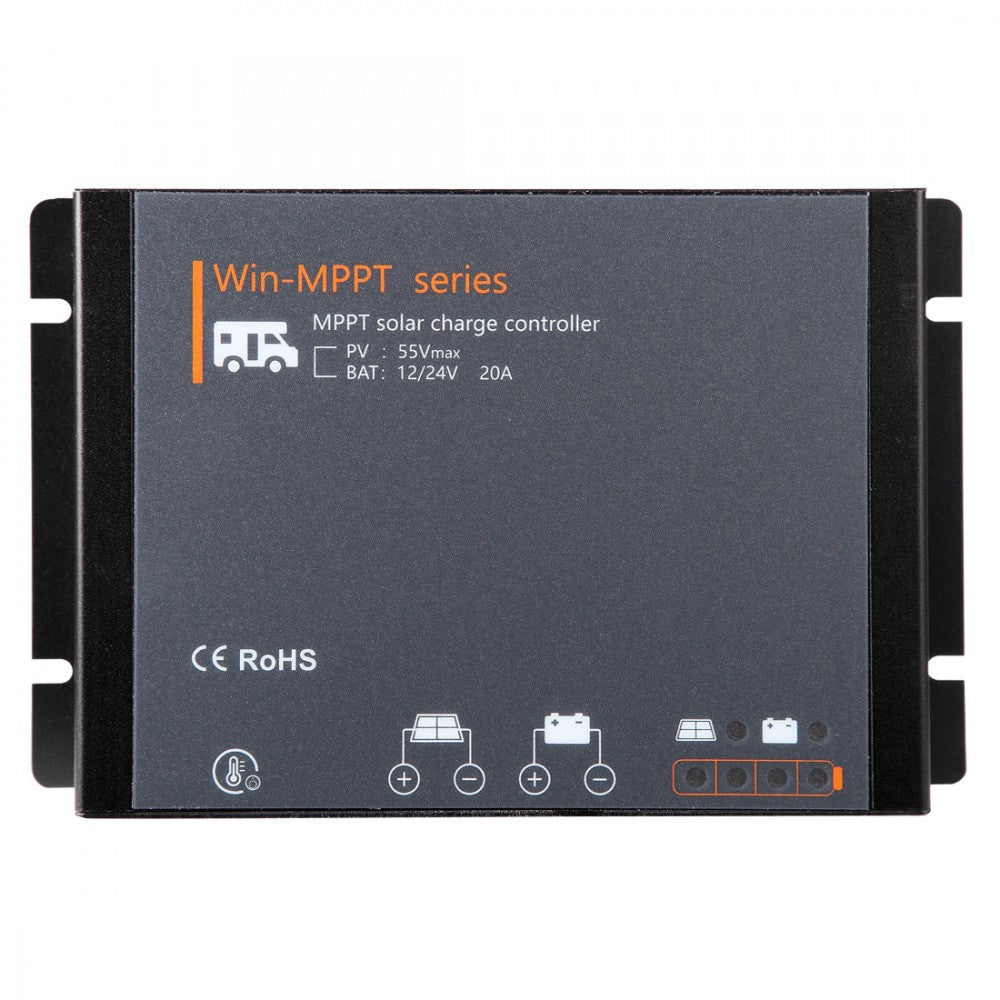

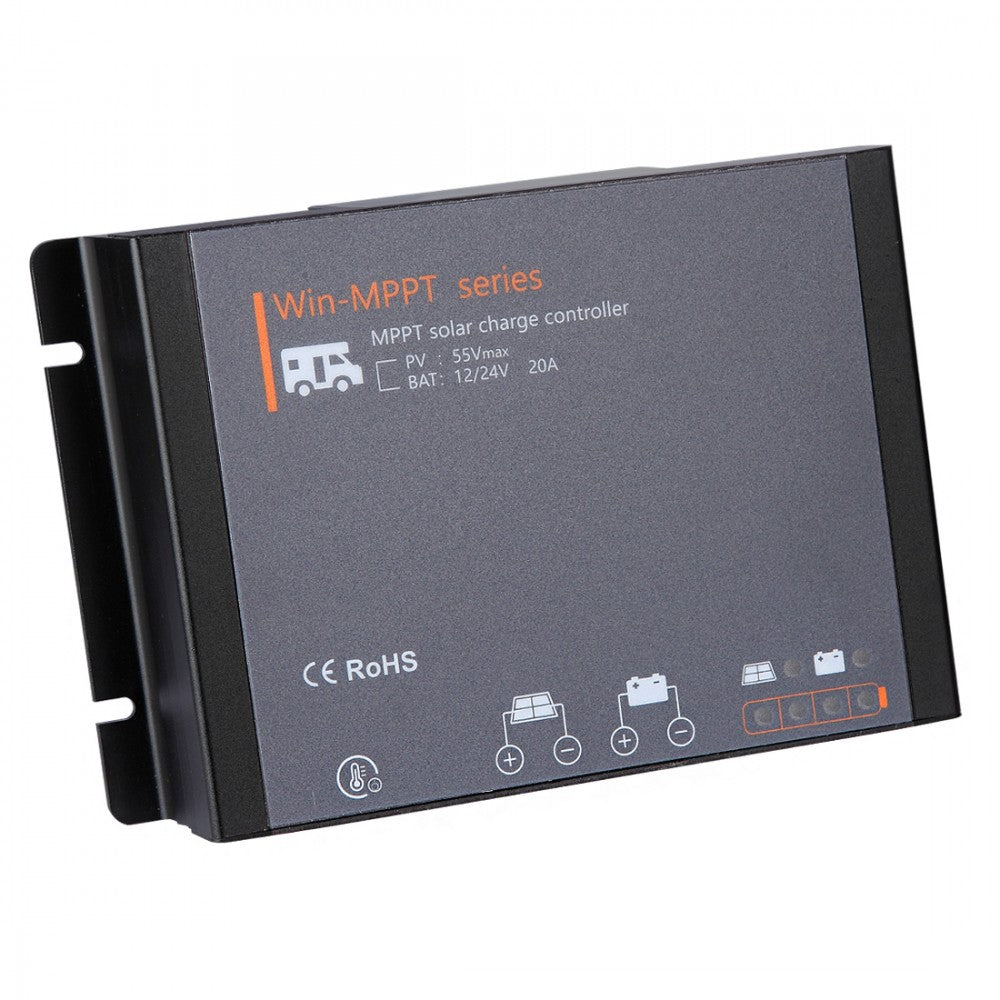

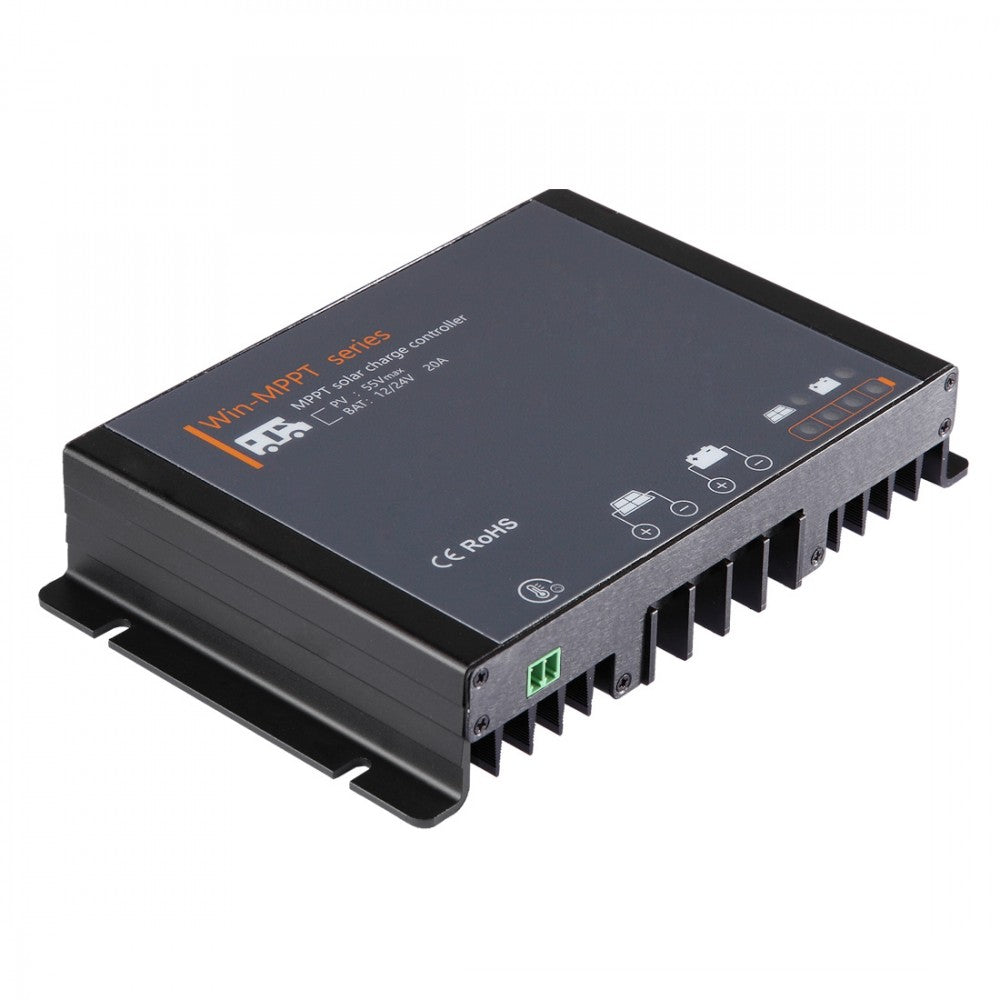

20A - Waterproof MPPT Solar Controller

20A - Waterproof MPPT Solar Controller

$160.00
$160.00
Tax included. Shipping calculated at checkout.

WIN-500-KIT

Waterproof 20A 12V/24V MPPT Solar Panel Regulator Charge Controller LCD Display. Charge for AGM, Liquid, GEL and Lithium Battery

Waterproof: Suitable for indoor or outdoor use
Battery Types: Gel, AGM, Liquid, Lithium (default: Gel)
Bluetooth: Support mobile phone APP, wireless monitoring.

Question about this product?

We're happy to help.

  • MADE TO SUIT
    All Types Of Vehicles
  • SAVE SPACE
    No Heavy External Panels
  • CUTTING EDGE
    Innovation & Unsurpassed Quality

Specifications

Model: Win500 System Voltage: 12V/24V Max Charging Power: 500W Max volt on Bat. Terminal: 35V Max volt on PV Terminal: 55V Temp. Compensation: -4.17mV/K per cell (Boost, Equalization)， -3.33mV/K per cell (Float) Communication: Bluetooth Grounding: Common Negative Environmental Parameter: Working temperature: -20 to +55 C Storage temperature: -25 to +80 C Ambient Humidity: 0-100% RH Enclosure: IP54 Mechanical Parameter: Dimensions: 164x106x32mm Weight: 700g Maximum Terminals Wire Size: 10AWG(4mm²)

Features

1. Innovative Max Power Point Tracking(MPPT) technology, tracking efficiency >99.9% 2. Full digital technology, high charge conversion efficiency up to 98% 3. LED Bar for easy to read charge state and battery information 4. Waterproof design, suitable for indoor or outdoor use 5. 12/24V automatic recognition 6. Liquid, Gel, AGM and Lithium battery for selection 7. The separate ports for remote temperature sensor, make battery temperature compensation more accurate 8. Four stages charge way: MPPT, boost, equalization, float 9. Automatic over-temperature power reduction function 10. Dual automatic restriction function when exceeding rated Charging Power and Charging Current 11. Android APP version for Bluetooth communication 12. Common negative design 13. Perfect EMC & thermal design 14. Full automatic electronic protect function
